Thailand continues to serve as the premier automotive assembly and component manufacturing hub in Southeast Asia. For Tier-1 and Tier-2 automotive component suppliers, maintaining rigorous tolerances while controlling raw material costs is decisive for long-term contract retention.

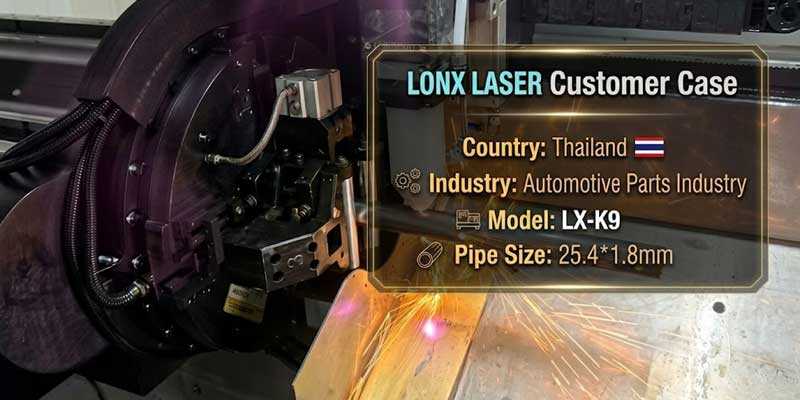

Recently, an established automotive parts manufacturer based in the Rayong automotive cluster modernized its fabrication line with the LONX LASER LX-K9 fiber laser tube cutting machine. Specialized in processing high-volume structural tubular components, the facility faced stringent requirements for high-speed cutting of 25.4 × 1.8 mm steel tubing with zero surface contamination and minimal material waste.
| Parameter | Specification Details |
| Client Location | Rayong, Thailand |
| Target Sector | Automotive Parts & Chassis Component Manufacturing |
| Machine Model | LONX LASER LX-K9 Precision High-Speed Tube Laser |
| Material Processed | Carbon steel & automotive alloy tubing |
| Tubing Dimensions | Outer Diameter: 25.4 mm |
| Key Objectives | Eliminate inner-wall dross, achieve zero tailing scrap, and accelerate weld-ready throughput |
Small-to-medium diameter tubes like 25.4 × 1.8 mm form the backbone of automotive seat frames, headrest supports, instrument panel beams, and chassis link rods. However, processing thin-to-medium wall tubing at scale introduces persistent fabrication pain points:
Molten Slag & Spatter Adhesion:
During conventional laser cutting of hollow sections, blown melt often splatters onto the opposite inner wall. This molten dross solidifies inside the 25.4 mm pipe, interfering with robotic automated welding, plug gauges, and internal tube coating.
Expensive Tail Remnants:
Traditional chuck mechanisms require a minimum clamping dead-zone, leaving 150 mm to 300 mm of unworkable pipe scrap per batch. Across thousands of automotive tubes, remnant losses significantly elevate material expenses.
Mechanical Deformation:
Legacy sawing and stamping setups frequently dent or ovalize 2
To resolve these quality and material efficiency constraints, the supplier integrated the LONX LASER LX-K9 fiber laser tube cutting machine, capitalizing on two proprietary technological innovations engineered specifically for automotive tube fabrication:
The LX-K9 utilizes a coordinated multi-chuck clamping configuration with extended travel and intelligent chuck overlap. By feeding the tube through the clamping assembly right up to the final millimeter, the LX-K9 enables true zero-tailing cutting. For the customer's 25.4 × 1.8 mm inventory:
Extracted maximum part yield per standard 6-meter raw pipe.
Lowered cumulative scrap weight by up to 12% across high-volume production cycles.
The internal cavity of a 25.4 mm tube offers little clearance between the top and bottom walls. The LX-K9 solves this via intelligent anti-spatter gas control and specialized optical focal tuning:
Prevents molten slag from adhering to the opposing inner wall.
Produces pristine, mirror-smooth internal surfaces and clean cut perimeters.
Eliminates the need for post-cutting acid baths, chemical flushing, or manual wire-brush deburring.
Engineered for small-to-medium automotive profiles, the self-centering chucks distribute clamping force uniformly along the tube's 1.8 mm perimeter. This guarantees complete roundness retention down to $\pm0.03\text{ mm}$, streamlining downstream automated bent-tube assembly.
Following the integration of the LONX LASER LX-K9, the Thai facility validated substantial cost reductions and throughput gains:
100% Weld-Ready Cut Quality: Parts move directly from the machine's sorting table to the automated welding jig without secondary deburring or slag removal.
10–12% Raw Material Savings: True zero-tailing operation minimized remnant loss across continuous multi-shift production.
3.5× Throughput Improvement: The LX-K9's dynamic acceleration slashed per-cut cycle times compared to mechanical cutting and deburring workstations.
Seamless Quality Compliance: Consistent length and bevel precision eliminated downstream assembly defects, satisfying strict automotive OEM quality audits.
The success of the LX-K9 in Thailand proves that investing in high-precision, waste-minimizing laser machinery yields an immediate operational return for automotive suppliers. Whether you are cutting 25.4 mm structural tubing or complex automotive profiles, LONX LASER provides turnkey systems tailored to high-volume manufacturing demands.
Want to inspect cut samples or calculate material savings for your production line?
